CNC Machining
Graetz Mfg., Inc. offers vertical milling, horizontal milling and live-tool turning in-house. We machine custom parts to your print, from a first prototype to full production, and our equipment can take on parts up to 85 inches long.
Vertical Machining Centers
Our strong line up of Vertical Machining Centers are the go to for milling, drilling, tapping and boring. With lots of machine options for long production runs or prototype job shop needs.
Capabilities up to 30″ x 85″

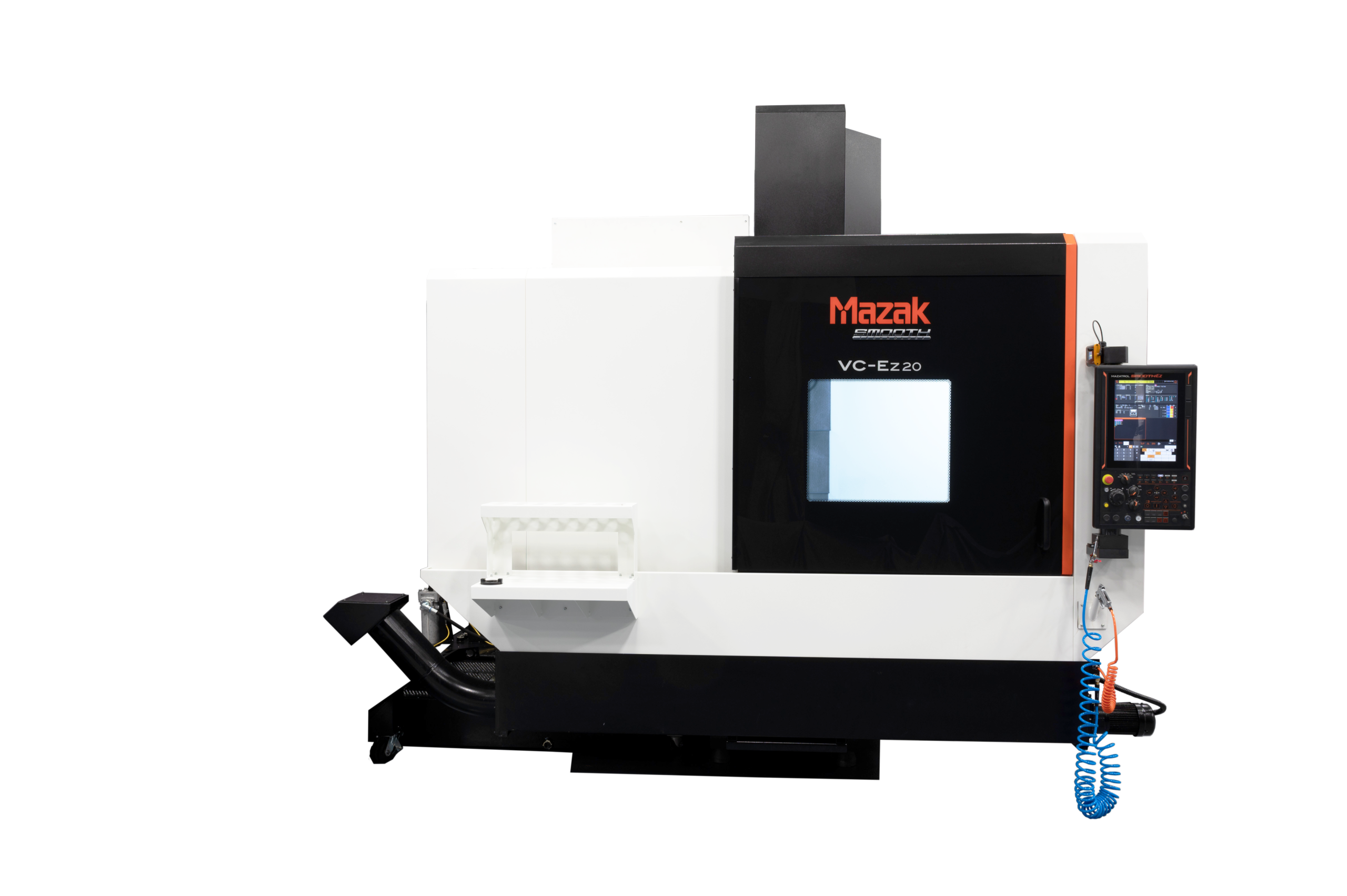

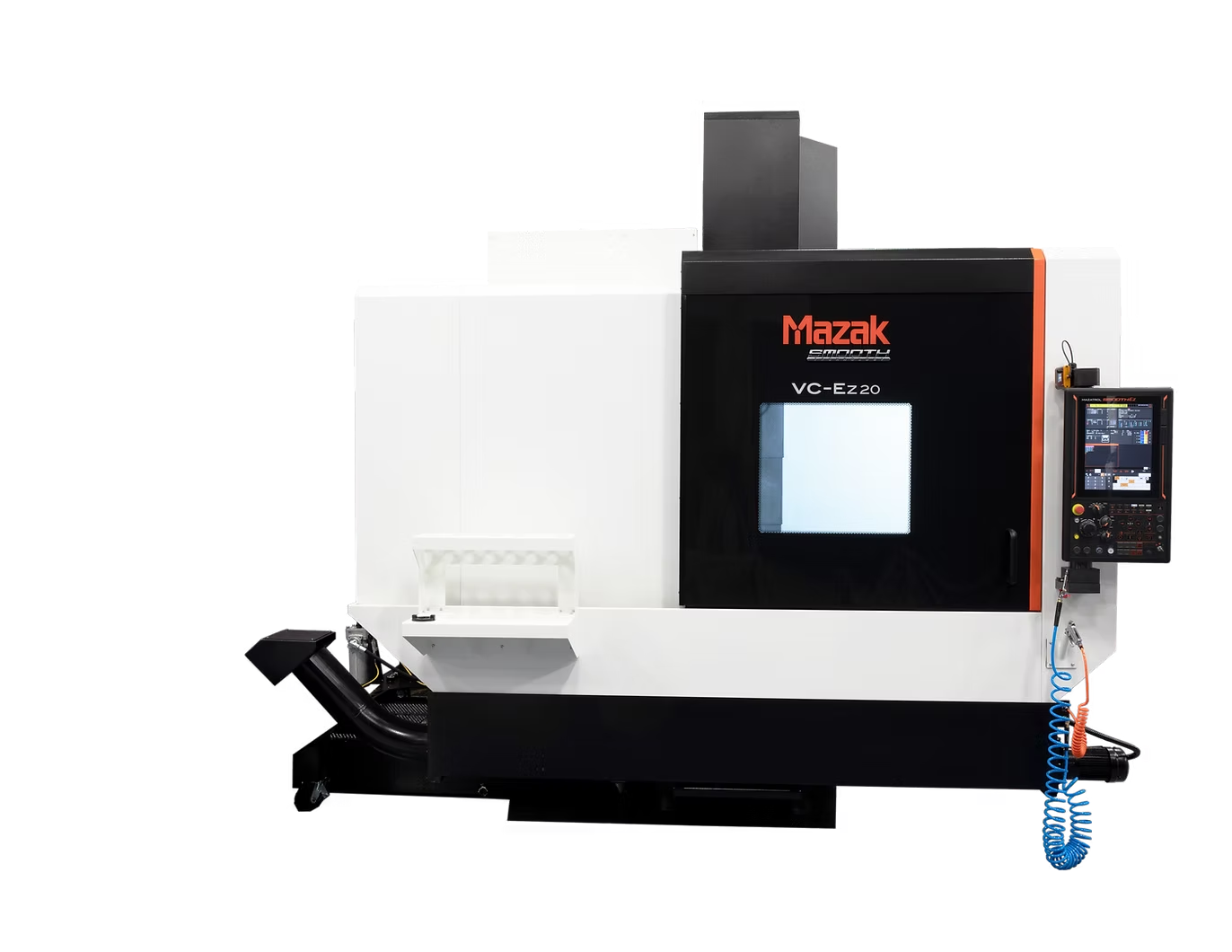

Mazak VC-EZ20 with Smooth Control
Rugged 25 HP, 12,000 RPM spindle, Highly efficient 30 Tool Changer

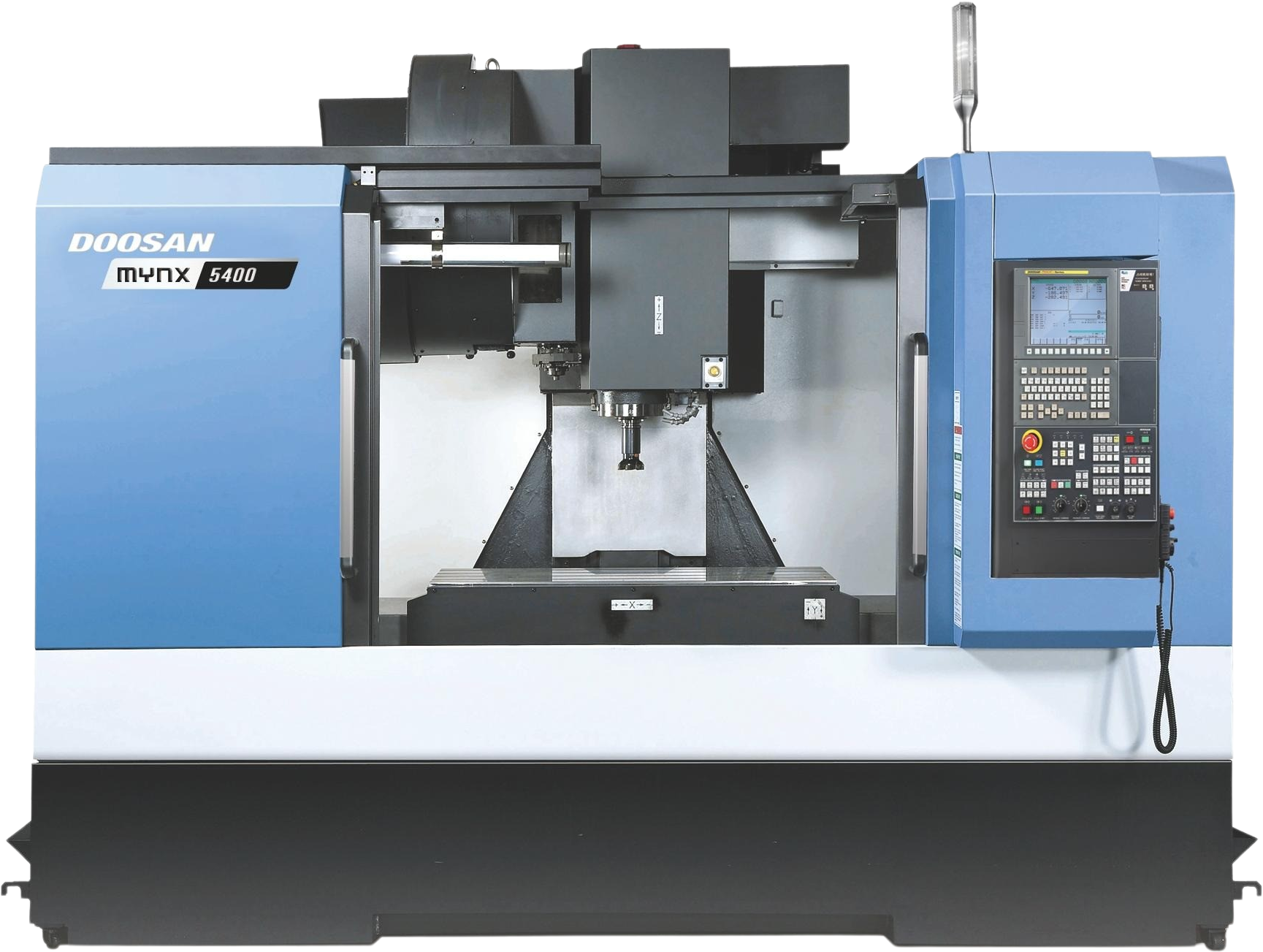

Doosan Mynx 5400x50 (with 4th axis)
Fanuc Control, X=40″, Y=21″, Z=21″, 30 Station Tool Changer, Coolant Through Spindle, 6,000 RPM Spindle, CAT50 Taper, Table 55″ x 26″

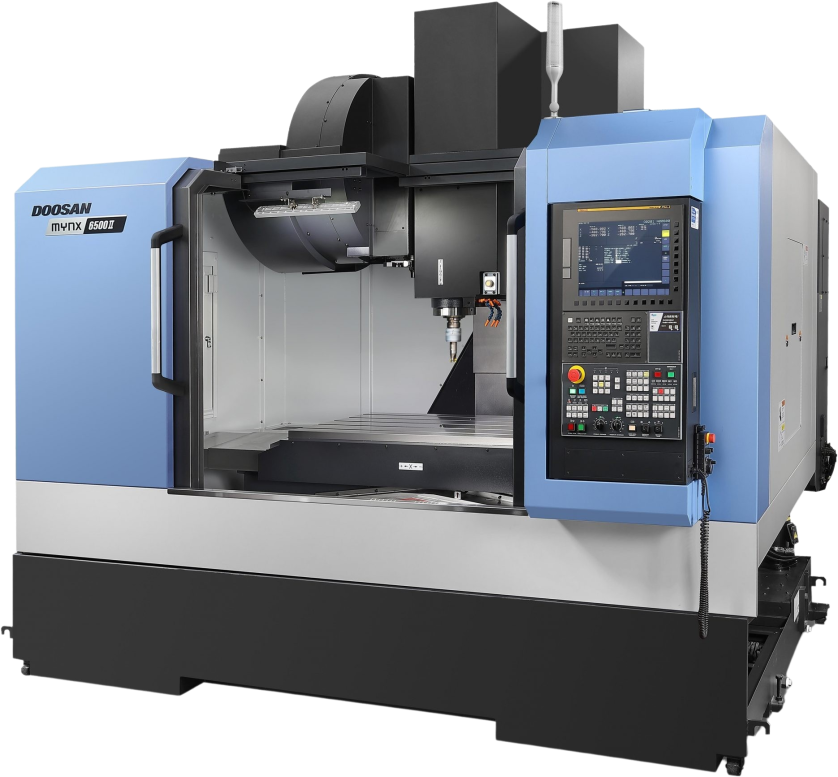

Doosan Mynx 6500x50 (with 4th axis)
Fanuc Control, X=50″, Y=26″, Z=25″, 30 Station Tool Changer, Coolant Through Spindle, 6,000 RPM Spindle, CAT50 Taper, Table 55″ x 26″

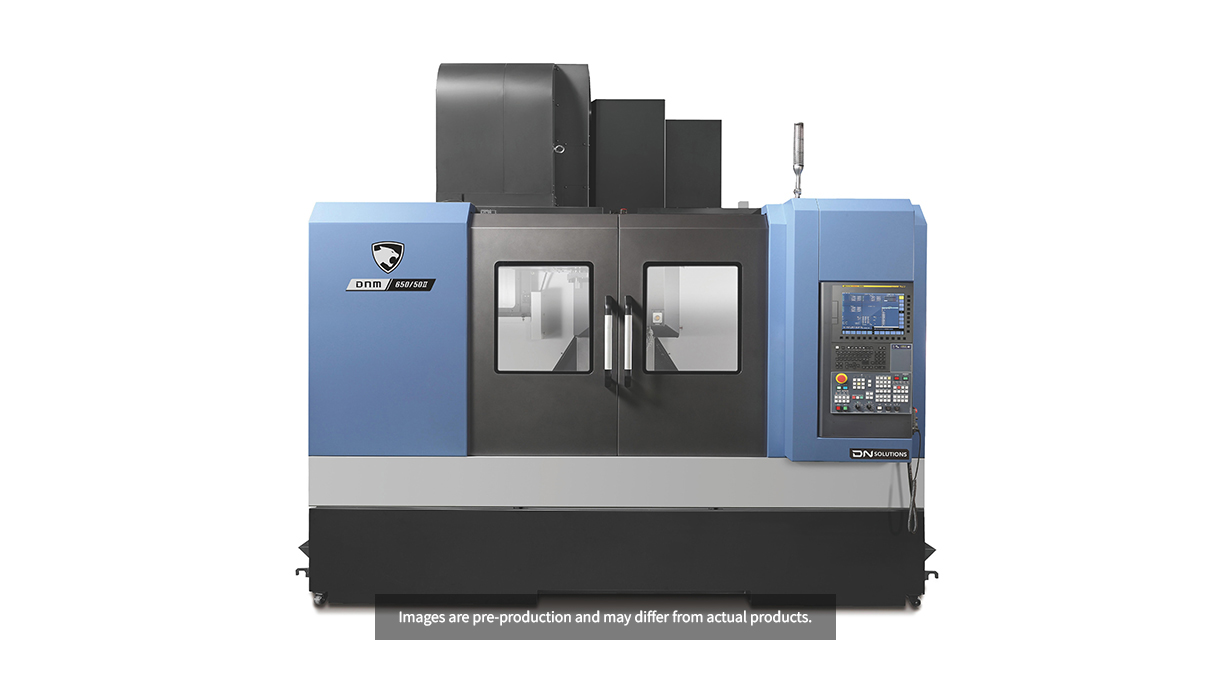

Doosan DNM 750L II
Large Capacity VMC, X=85″, Y=30″, Z=25.6″, 30 Station Tool Changer
Horizontal Machining Centers
A Horizontal Machining Center (HMC) uses a spindle that is parallel to the ground. With a horizontally oriented spindle, tools protrude from the side of the tool holder and cut across the side of a workpiece, encouraging chips to fall away from the table
Capabilities up to 57″ x 61″

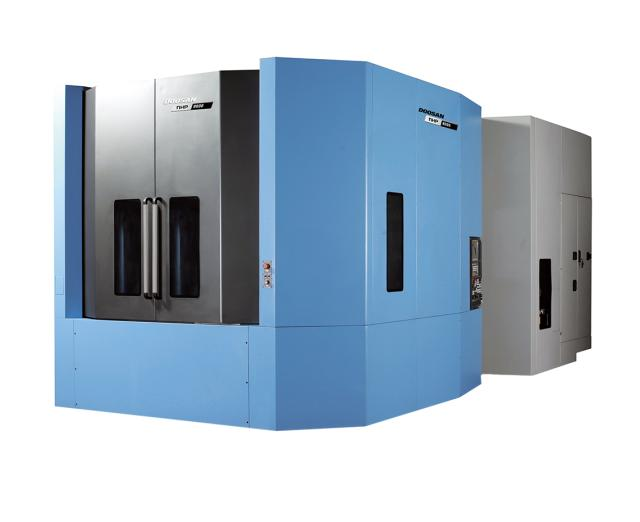

Doosan NHP8000
X=55.1″, Y=47.2″, Z=53.9″, 31.5″ x 31.5″ Twin Pallet Changer, Full 4th Axis, 90 piece Automatic Tool Changer, CAT50 Spindle Taper, 50HP, 10,000 RPM Spindle

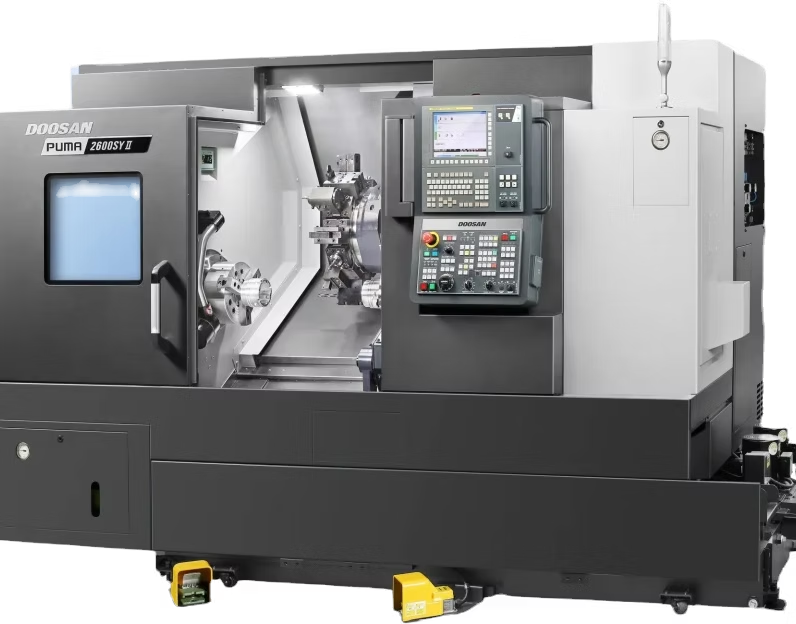

CNC Turning Centers (Live Tool)
CNC Live tooling provides a number of unique advantages to the performance of custom CNC machining services. Compared to conventional fixed tooling, live tooled CNC workstations are capable of offering more design flexibility for your precision-machined parts, components, and assemblies.
Capabilities up to 50″
Doosan Puma 240GLMC W/Fanuc Control (Gantry Load)
12.50″ Max Turn, 25.00″ Max Length, 3.50″ Bar Capacity
Doosan Puma 240MC W/LNS Bar Feeder and Fanuc Control
12.50″ Max Turn, 21.00″ Max Length, 3.50″ Bar Capacity

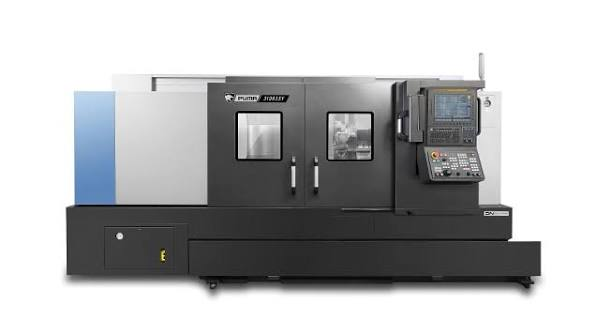

Doosan 3100LY W/Hydraulic Steady Rest and Fanuc Control
16.53″ Max Turn, 50.40″ Max Length, 5″ Y-Axis, 4.00″ Thru Hole
Doosan Puma 480 W/Fanuc Control
35.00″ Max Turn, 39.00″ Max Length, 6.50″ Thru Hole, 60HP
Doosan Puma 10HC Turning Center
15.00″ Max Turn, 20.00″ Max Length
Mori Seiki SL25/500 Turning Centers
15.00″ Max Turn, 20.00″ Max Length
Mori Seiki SL25/1000 Turning Centers
15.00″ Max Turn, 39.00″ Max Length

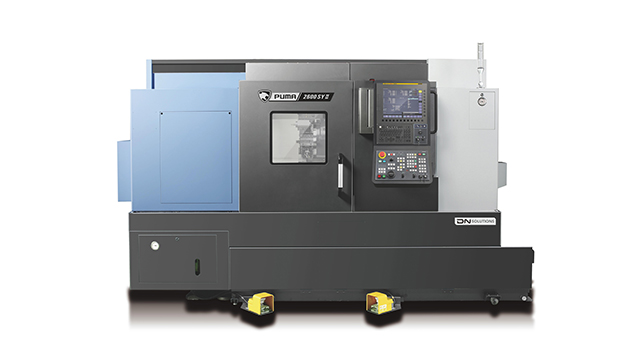

Puma 2600Y II
12″ Chuck Size, 376mm turning diameter, 760mm turning length, 12 tool stations, 4000 revolutions per minute Spindle Speed
